Polymer Melt Filter Elements, Candle Filters, Filter Housing and Cartridges and Filter Fittings. Forms Including: Pleated Filter Elements, Pipe Filter Elements, Extruded Screen Packs, Filter Discs, Leafs, Baskets, Bags and etc. For filtering of air, gas, oil, grease, liquid and fuel.......

Candle Filter System ( Housing and Element)

We supply Candle Filter Elements and Houses meeting all industry standards for filtration efficiency and durability. The production undergo rigorous quality control checks to ensure the filter products meet the required filtration efficiency rating.

Candle Filter System (Housing + Element) for Air

Candle type filters in air filtration systems, offering high-efficiency filtering capabilities.
Features:
1, Candle type filters have robust design, high-temperature tolerance, and excellent filtration efficiency.
2, The material used in the Candle type air filter is a combination of PET (Polyethylene Terephthalate) and SUS (Stainless Steel) Pipe which provide high structural integrity and ensures durability under stressful conditions.

Structure
This Candle Filter Element consists of a central SUS pipe that provides the structural skeleton. The PET material is designed to wrap around this pipe, forming the actual filtration medium. The structure is designed to withstand high temperatures and flow rates while providing exceptional filtering efficiency.

Candle Filter Element made of PET filter media and Stainless Steel pipe:

Candle filter element material:
PET + SUS Pipe
Filter efficiency: 99.8% up particle 1u above.
Temperature: 150 ℃
Flow rate: 15 m3/h
Medium: Air

Candle Type Filter Element ( of Wire Mesh Material) for Oil Filter

Designed and manufactured for main engine lubricating oil filter

SPECIFICATIONS FOR CANDLE TYPE FILTER ELEMENTS FOR MAIN ENGINE LUB OIL FILTER

Specification of main engine:
No of cylinders - 08
Type of oil - GADINIA S3 40

Detail of Candle type filter element:
Item description-Candle type filter
Max working pressure-8 Bar
Max working temperature-95 ℃
Wire mesh filtration level-40-60 micron

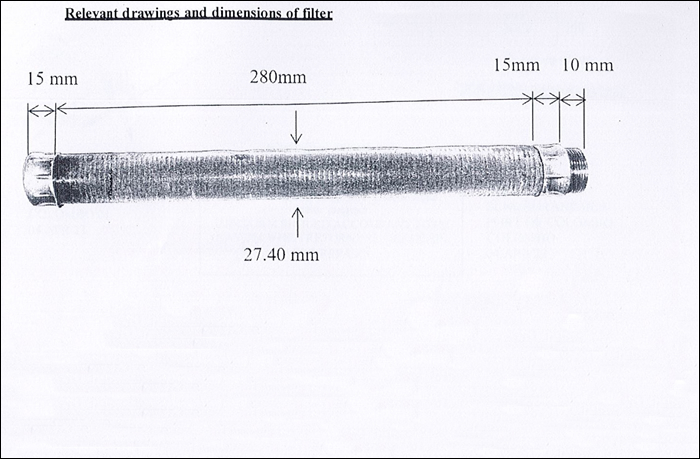

Wire mesh candle type filter element for main engine lubricating oil filter

Filter Fittings:
